xDuoo MU-601 USB DAC ES9018K2M PCM384kHz DSD256 Analog Coaxial Output Decoder
Product details
| Management number | 212341790 | Release Date | 2026/04/06 | List Price | $51.60 | Model Number | 212341790 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

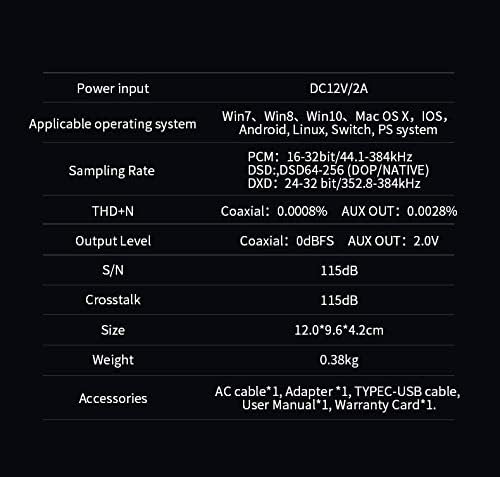

Power input：DC12V/2A Sampling Rate： PCM: 16-32bit/44.1-384kHz DSD：DSD64-256 (DOP/NATIVE) DXD: 24-32 bit/352.8-384kHz THD+N：Coaxial: 0.0008% AUX OUT: 0.0028% Output Level： Coaxial: 0dBFS AUXOUT: 2.0V S/N：115dB Crosstalk：115dB Size：12.0*9.6*4.2cm Weight：0.38kg Accessories：AC cable* 1, Adapter *1, TYPEC-USB cable,User Manual*1, Warranty Card*1.
- It adopts XMOS XU208 USB receiver chip, works in asynchronous transmission mode, and supports WASAPI, ASIO, KS core stream mode, which greatly reduces jitter and delay, and supports up to PCM384KHZ and native DSD256.

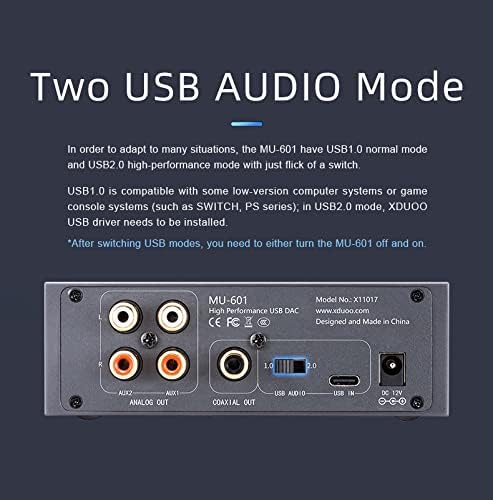

- Two USB AUDIO Modes： In order to adapt to many situations, the MU 601 have USB1.0 normal mode and USB2.0 high-performance mode with just flick of a switch. USB1.0 is compatible with some low-version computer systems or game console systems (such as SWITCH, PS series); in USB2.0 mode, XDUOO USB driver needs to be installed. *After switching USB modes, you need to either turn the MU-601 off and on.
- ES9018K2M High Performance DAC Chip： ES9018K2M decoder chip are used, with extremely high SN and extremely low THD+N .
- Two high-quality active crystal oscillators are used as clock sources, which work at 44.1k and 48k and their multiple sampling rates respectively. The system automatically switches and controls to ensure the reliable and independent operation of local clocks without interference with each other.
- Enthusiast Capacitance ：Adopt the special enthusiast Japanese RUBYCON capacitance as the main filter capacitance, have smooth and warm sound, and splendid high frequency.
| Brand | Fanmusic |
|---|---|
| Color | black |
| Format | Digital |
| Item Weight | 380 Grams |
| Manufacturer | xDuoo |
| Model Number | MU-601 |
| Connector Type | 3.5mm Jack, USB |
| Control Method | Touch |
| Video Encoding | RM |
| Controller Type | Touch |
| Audio Output Mode | Stereo |
| Audio Output Type | Digital RCA |
| Compatible Devices | Personal Computer |
| Number of Channels | 2 |
| Connectivity Technology | Auxiliary, USB |
| Item Dimensions D x W x H | 1.65"D x 3.78"W x 1.65"H |
| Supported Internet Services | Spotify |
| Surround Sound Channel Configuration | 2.0 |
| Other Special Features of the Product | High-Performance DAC, Dual USB Modes, Dual Crystal Oscillators |
