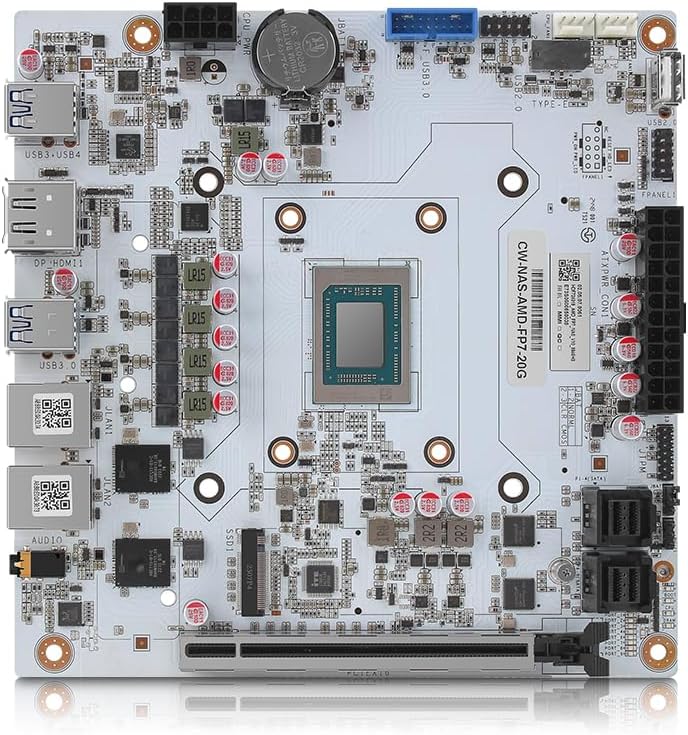

AMD 8845HS 8-core NAS Motherboard with Dual 10G Ethernet Ports and 8-Bay AI Processor (Motherboard +2*SFF8643)
Product details
| Management number | 212255909 | Release Date | 2026/04/06 | List Price | $195.60 | Model Number | 212255909 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

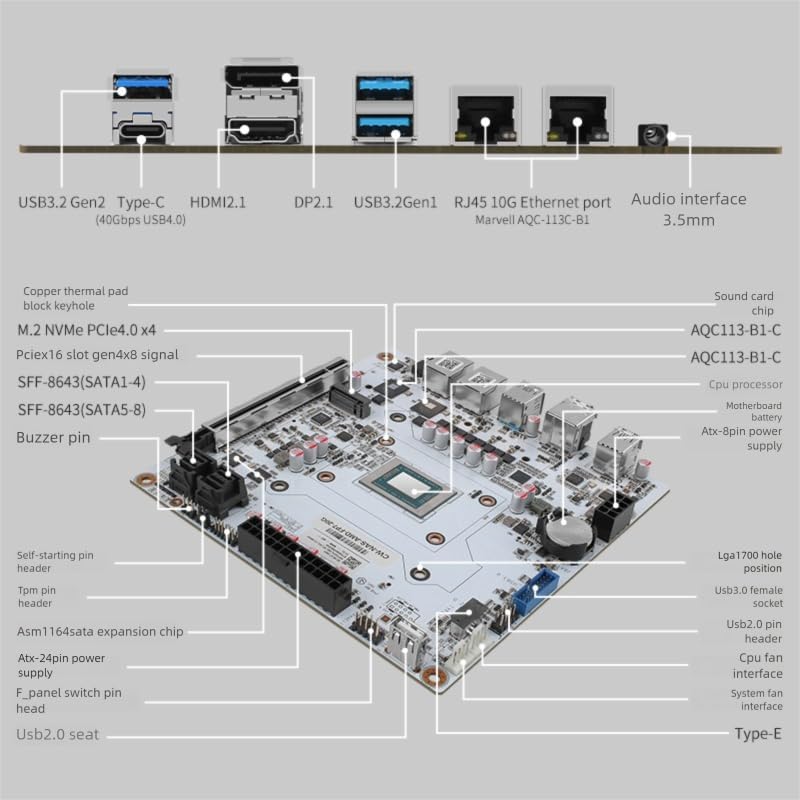

2.Supports Notebook SO-DIMM DDR5 Memory Technology 2 SO-DIMM DDR5 Memory Slots DDR5 Support 5600MHz Maximum capacity of 48GB for a single memory stick, 96GB for two sticks 3.Base power consumption 45W Configurable thermal design power consumption (CTDP) 35-54W 4. 2*M.2 NVMe PCle 4.0x4 signals 2 strips (2280) 2*SFF-8643 interfaces, 2 ASM1164 chipsets rotate (can be expanded with 8 SATA3.0 signals) 2*10G RJ45 10 Gigabit Enclosure (AOC113-B1-C) AMD Ramdeon 780M, 12-core count, video card frequency 2700MHZ 4.1*3.5mm 2-in-1 audio interface REALTEK ALC269 chip HDMI2.1 interface support 4K 3840x2160 @ 120HZ 8K 7680x4230 @ 60Hz DP2.1 interface support 4K 4096x2160 @ 240Hz 8K 7680x4320 @ 60Hz Type-c interface support 8K 7680x4320 @ 60Hz 5.1* 4Pin CPU FAN 1* 4Pin SYS FAN -1* 8Pin ATX CPU power supply (plugging in 4Pin or 8Pin is OK) 1* 24Pin ATX motherboard power supply 2* SO-DIMM DDR5 memory slots 2* M.2 NVMe PCle4.0x42280 specification hard disk slots -2*SFF-8643 interface 1*PCle x16 slot (PCle4.0 x8 signaling) Onboard Interface -1*USB2.0 Dock (Vertical, Direct Plug) 1*Motherboard Battery Dock 1*TYPE-E Female Socket -1*USB2.0 Pin header -1*USB3.0 female socket -1*JTPM Pin

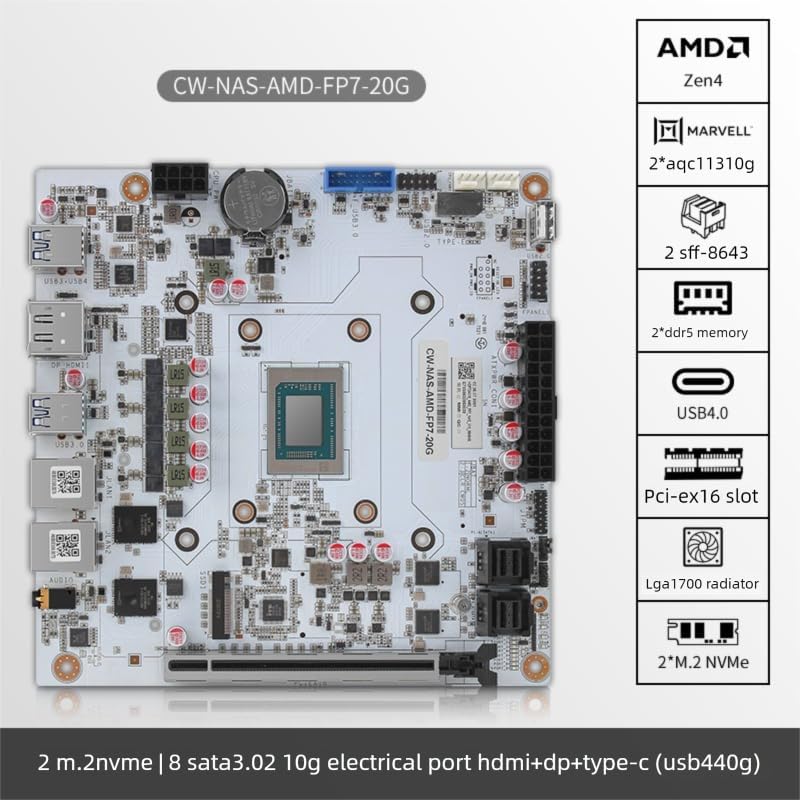

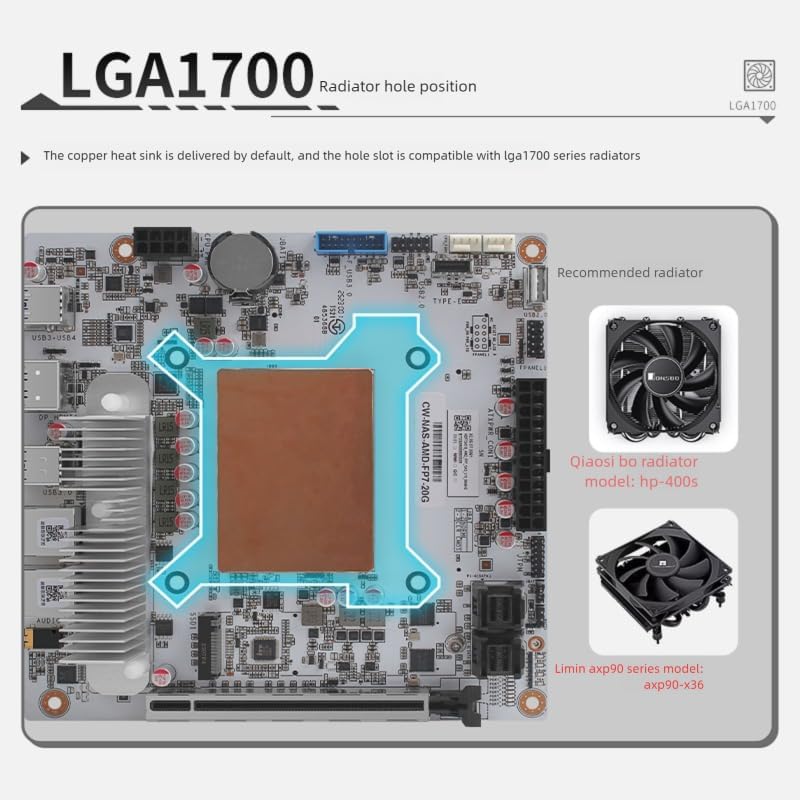

- Equipped with the AMD Ryzen 78845HS processor, Zen4 architecture, 8 cores and 16 threads 17cm x 17cm | ITX form factor, compatible with LGA1700 series CPU coolers AMD Ryzen AI NPU can reach up to 16 TOPS.

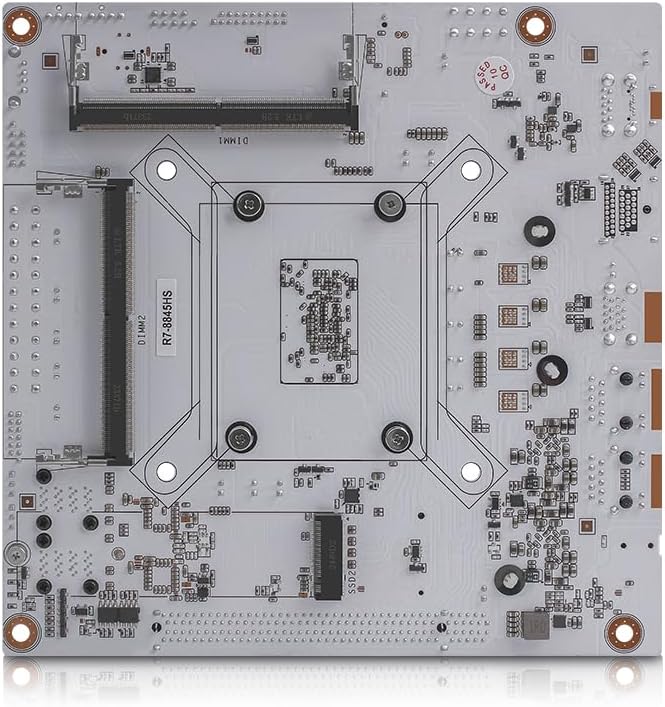

- 1 PCI Express 16-slot with PCIe 4.0 x8 interface signal Two SFF-8643-4-lane connectors can be expanded to provide 8 SATA 3.0 signals.2 M.2 NVMe hard drive slots (PCle 4.0 x 4) - 1 on the front and 1 on the back, both of 2280 specification.
- Dual-channel notebook memory slot, SO-DIMM DDR5, defaults to supporting 5600MHz and is backward compatible.Two RJ45 10-gigabit electrical ports (AQC113-B1-C rate adaptive 1G/2.5G/5G/10G) HDMI + DP + Type-C three-screen display output supports 4K/8K
- 1 Type-C USB4 interface with a rate of 40 Gbps, 3 USB 3.0 A ports 1 USB 3.0 female connector and 1 Type-E female connector, allowing the leads to be connected to the panel.
- It is equipped with one USB 2.0 port, which supports applications such as USB disk encryption and partial system booting.One 3.5mm dual-function audio interface, supporting microphone input or audio output
| Brand | oaknode |
|---|---|
| Platform | Windows 10 |
| CPU Model | Ryzen 7 |
| Model Name | AMD 8845HS |
| Chipset Type | i5-12450H |
| Manufacturer | oaknode |
| Model Number | Motherboard +2*SFF8643 |
| Number of Ports | 14 |
| Total Usb Ports | 6 |
| Processor Socket | BGA 437 |
| Total PCIe Ports | 1 |
| Total SATA Ports | 8 |
| Compatible Devices | i5-12450H |
| Memory Clock Speed | 1 GHz |
| Warranty Description | 1 year |
| Compatible Processors | AMD Ryzen 78845HS |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 2 |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 16 GB |
| Ram Memory Maximum Size | 96 GB |
| Number of Ethernet Ports | 2 |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
