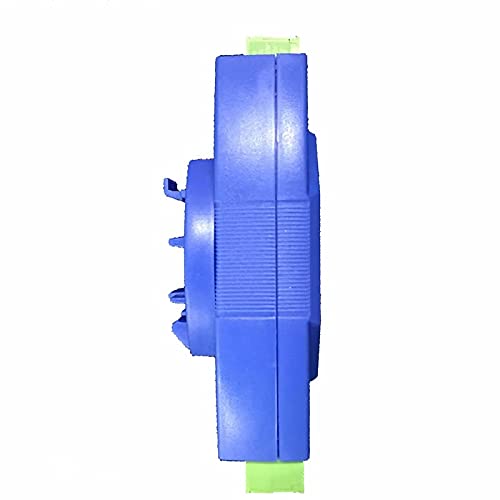

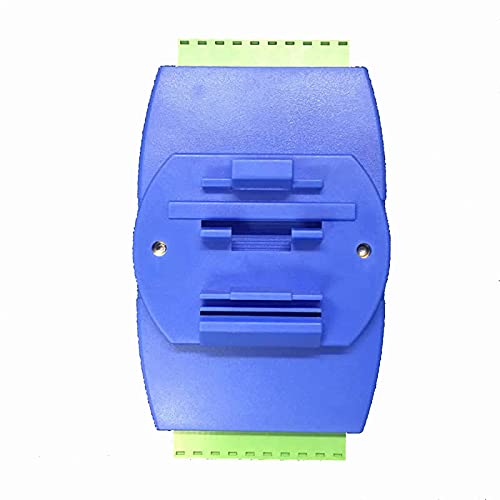

4-20ma to RS485 8-Channel Analog Input Acquisition Module 0-10V high Precision MODBUS-RTU - (Color: 4-20mA)
Product details
| Management number | 211160435 | Release Date | 2026/04/04 | List Price | $38.50 | Model Number | 211160435 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Overview* 8 single-ended analog input (DC type 0-2CmA / 4-20mA / 0-5V / 0-10V)* Double serial RS485 / RS232 can be used arbitrarily, WCDBISRTU standard communication, can communicate with configuration software, PLC, industrial touch screen, etc.* Power communication dual indicator* Communication circuit 3000v isolation, lightning protection, anti-interference design* The acquisition port is fully protected, and the 24V voltage is incorrectly connected to the module acquisition port for a long time without damage.* Can read the value of temperature and pressure transmitter directly by reading the extension register, no data processing is required* Can be widely used for signal acquisition and control of industrial field equipmentSecond, the main parameters* Analog input channel: 8 single-ended* Analog input type: DC type 0-20mA / 4-20m \\ / O-5V / 0-10V* Analog input accuracy: ± 0.02mA* Working temperature range: -20-70 ℃* External power supply: DC7V ~ 32Y / W* Sampling rate: 10 times per second for all channels* Installation method: standard DIN rail installation or screw installation* Dimensions: 125 × 73 × 35mmItem specifics:Condition: NewType: Logic ICs
- Color: 4-20mA
- Condition: New
- Type: Logic ICs
| Manufacturer | Anncus |
|---|
