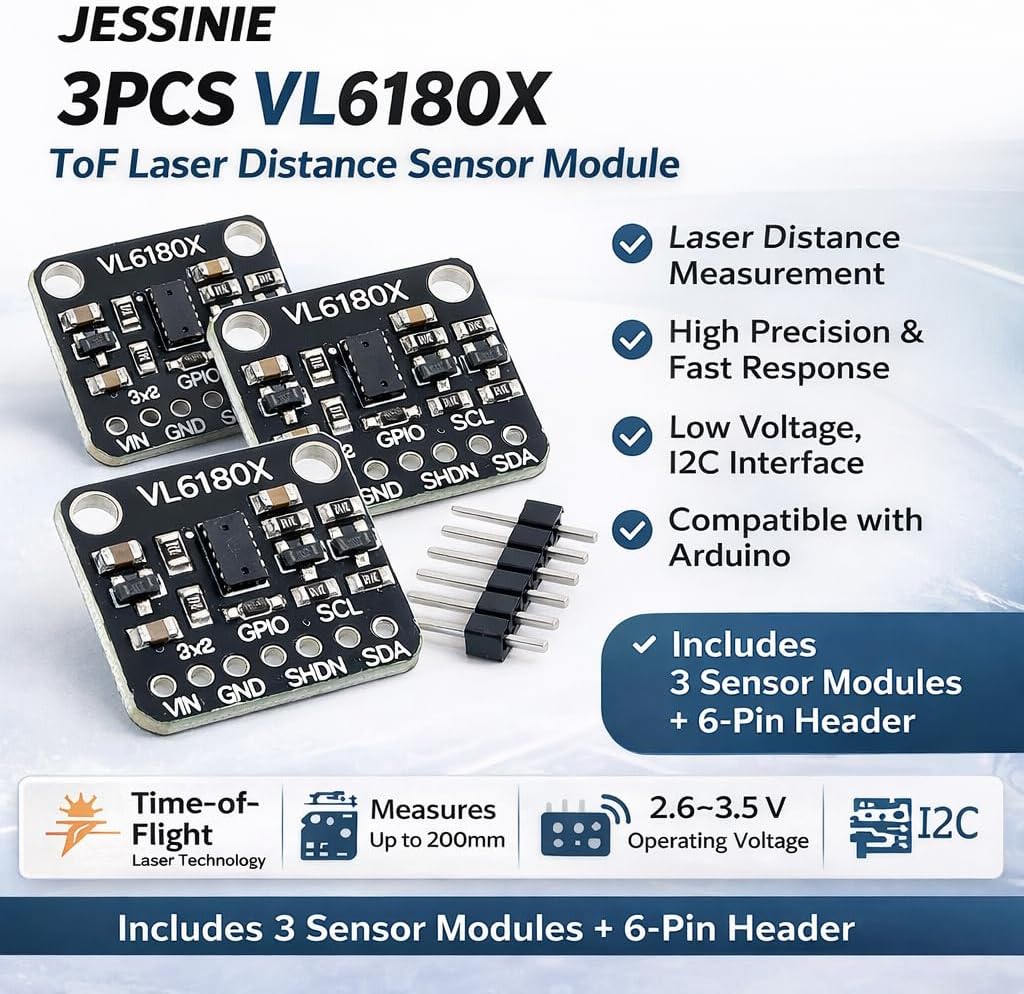

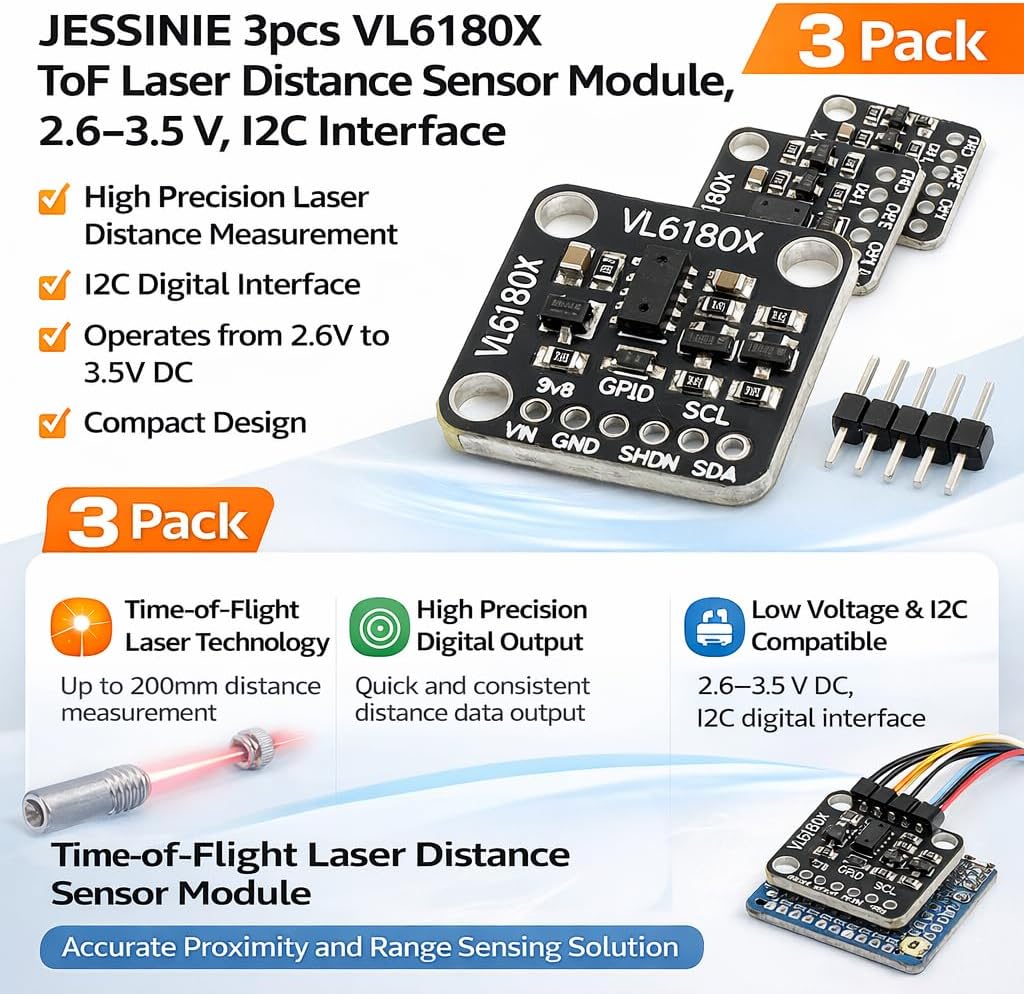

3pcs VL6180X ToF Laser Distance Sensor Module, 2.6–3.5 V, I2C Interface

Product Overview VL6180X Laser Distance Sensor Module based on Time‑of‑Flight technology. High‑precision short‑range ranging and ambient light sensing solution. Built with original VL6180X chip, providing fast response and stable digital output for proximity and distance measurement. 1. Product Parameters Sensor IC: VL6180X Sensor Type: ToF laser distance and proximity sensor Measurement Range: Up to 200 mm Distance Resolution: High precision digital output Supply Voltage (VCC): 2.6–3.5 V DC Output Type: Digital distance data Communication Interface: I2C Light Source: Integrated IR laser emitter Response Time: Fast ranging mode Operating Temperature: −40 °C to +85 °C 2. Pin Function Description VCC (IN+): DC power input positive GND: Power ground SCL: I2C clock signal SDA: I2C data signal GPIO0: Interrupt or range ready output CE: Chip enable input 3. Common Questions & Answers (FAQ) Q1: What is the maximum measurement distance? A1: The effective ranging distance is up to 200 mm. Q2: What sensing technology does it use? A2: It uses Time‑of‑Flight laser measurement. Q3: What voltage is required to power the module? A3: It operates from 2.6V to 3.5V DC. Q4: Which interface is used for communication? A4: It uses the I2C digital interface. Q5: Is it suitable for proximity detection? A5: Yes, it is ideal for short‑range proximity sensing.

• 【Time‑of‑Flight Laser Distance Measurement】 VL6180X uses Time‑of‑Flight laser technology for short‑range distance sensing; measures absolute distance up to 200 mm independent of target color; delivers high‑precision digital results; supports accurate proximity detection in space‑constrained designs
• 【High Precision And Fast Response Output】 Provides stable digital distance data with fast ranging response; minimizes latency during continuous measurement; supports smooth real‑time distance tracking; improves reliability for applications requiring quick and repeatable proximity feedback
• 【Low Voltage Operation With Integrated IR Emitter】 Operates from 2.6 V to 3.5 V DC; compatible with modern low‑power microcontrollers; integrated IR laser emitter simplifies optical design; reduces external component count while maintaining consistent measurement performance
• 【I2C Digital Interface With Interrupt Support】 Standard I2C communication simplifies integration and wiring; GPIO0 pin supports interrupt or range‑ready signaling; reduces constant polling by the controller; improves system efficiency and firmware structure
• 【Compact Module For Short‑Range Proximity Sensing】 Small PCB layout with clear VCC, GND, SCL, SDA, CE pins; fits tight mechanical spaces; supports quick prototyping and layout; compatible with for Arduino and similar I2C platforms using proper voltage matching
